descriptionProduct description
Central Venous Access

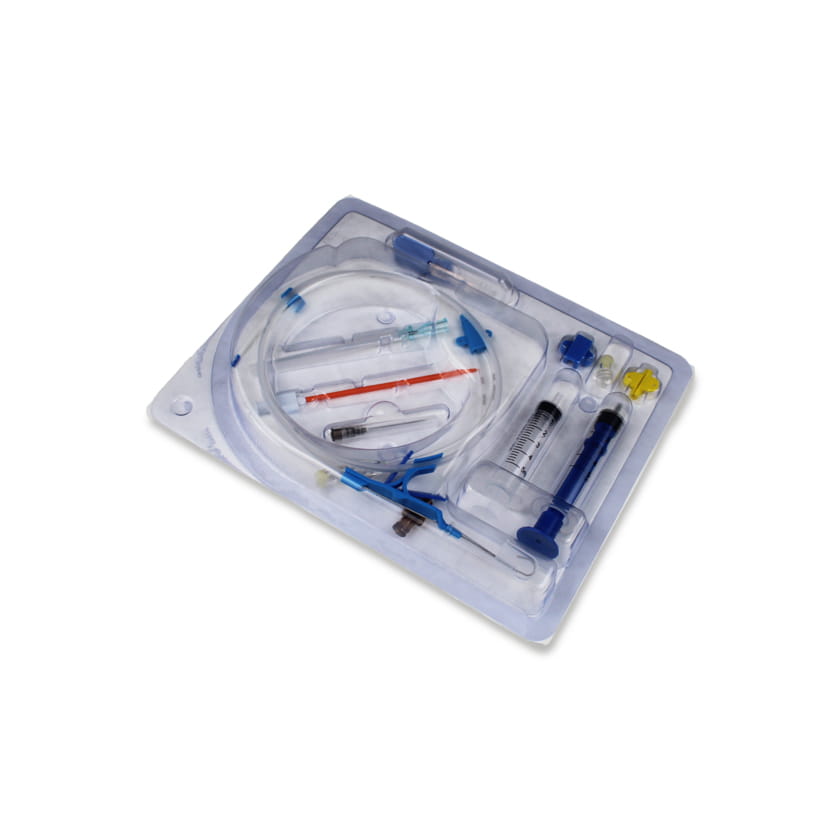

Double-Lumen Central Venous Catheterisation Set
Double-lumen central venous catheterisation set supplied by the Seldinger technique, comprising a scaled biocompatible polyurethane catheter with colour-coded arms, dilator, guidewire, introducer needle and ancillary components. Sterile, single-use.
Specifications
| Catheter material | Biocompatible polyurethane, scaled |
| Guidewire | 0.035 in (0.89 mm) x 600 mm |
| Introducer needle | 18G (1.25 mm) x 70 mm |
| Lumens | Double (2-channel) |
Features
- Scaled, biocompatible polyurethane catheter with a soft blue tip to ease insertion and protect the vessel
- Catheter arms marked by diameter and colour-coded
- Includes dilator
- Guidewire 0.035 in (0.89 mm) x 600 mm
- Blue introducer syringe 5 ml (Luer)
- Introducer needle 18G (1.25 mm) x 70 mm (Y version available)
- Injection syringe 5 ml (Luer), injection needle
- Heparin Luer-Lock caps, scalpel and fixation clip
- Sterile, single-use
Ordering information
| REF | Size | Catheter length | Lumen diameters (G) |
| TARGET-MMCVCBJ2-70-15 | 7F | 15 cm | 14/18 |
| TARGET-MMCVCBJ2-70-20 | 7F | 20 cm | 14/18 |
Regulatory & Compliance
- CE marked medical device, compliant with Regulation (EU) 2017/745 (MDR)
- Sterile, single-use
- Manufacturer: Targ
