descriptionProduct description
Haemodialysis Access

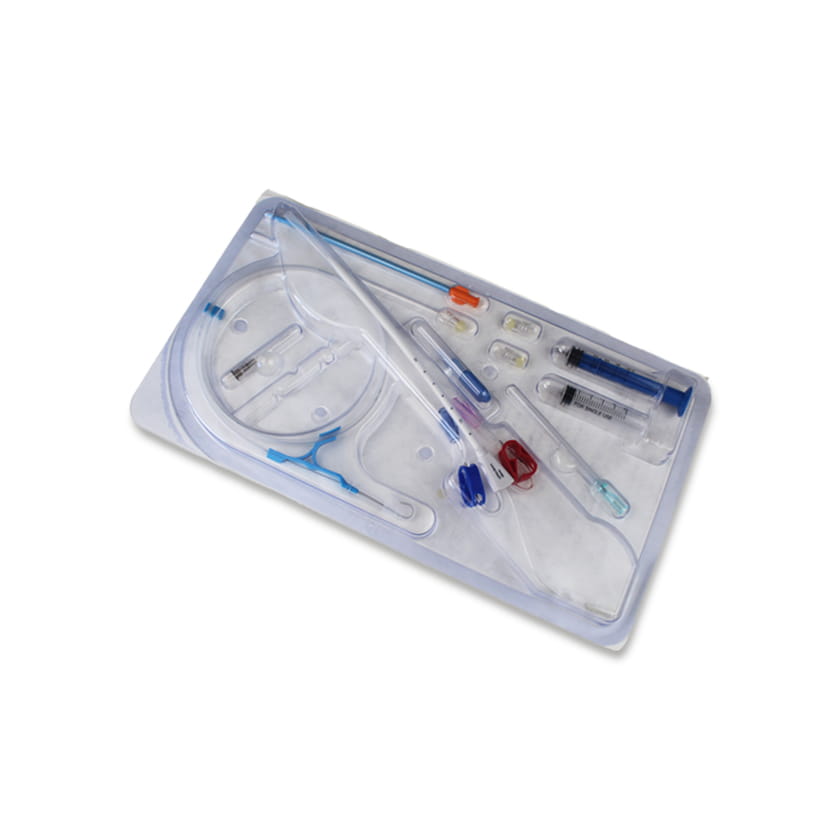

Triple-Lumen Haemodialysis Catheter Set
Triple-lumen haemodialysis catheter set supplied by the Seldinger technique, comprising a scaled biocompatible polyurethane catheter with directional, colour-coded arms, dilator, guidewire, introducer needle and ancillary components. Sterile, single-use.
Specifications
| Catheter material | Biocompatible polyurethane, scaled |
| Guidewire | 0.038 in (0.97 mm) x 600 mm |
| Introducer needle | 18G (1.25 mm) x 70 mm |
| Lumens | Triple (3-channel) |
| Lumen diameters | 16G / 12G / 12G |
Features
- Scaled, biocompatible polyurethane catheter
- Catheter arms marked by direction and colour-coded (available in straight and curved versions)
- Includes dilator
- Guidewire 0.038 in (0.97 mm) x 600 mm
- Blue introducer syringe 5 ml (Luer)
- Introducer needle 18G (1.25 mm) x 70 mm (Y version available)
- Injection syringe 5 ml (Luer), injection needle
- Heparin Luer-Lock caps, scalpel and fixation clip
- Sterile, single-use
Ordering information
| REF | Size | Catheter length |
| TARG-TGHCBCJ3-12-16 | 12F | 16 cm |
| TARG-TGHCBCJ3-12-20 | 12F | 20 cm |
Regulatory & Compliance
- CE marked medical device, compliant with Regulation (EU) 2017/745 (MDR)
- Sterile, single-use
- Manufacturer: Targ
