descriptionProduct description
Laryngoscopes / Blades

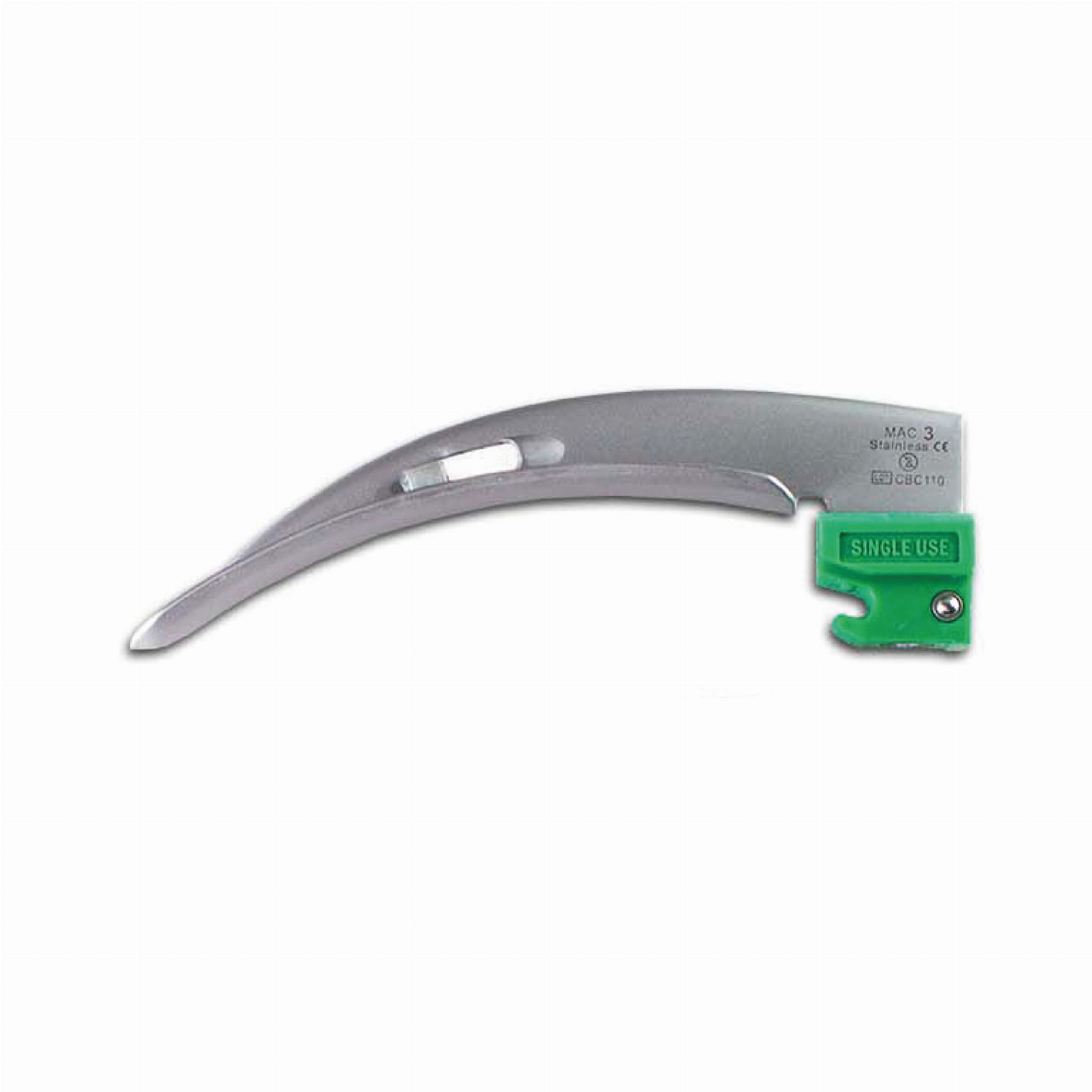

Disposable Laryngoscope Blade — Metal with Plastic Base, Macintosh
Single-use macintosh laryngoscope blade with a 5 mm plastic fibre-optic light guide for bright, even illumination of the oropharynx. The ISO 7376/3 (green standard) fitting accepts every matching laryngoscope handle.
Specifications
| Blade type | Macintosh |
| Construction | Metal alloy with plastic base |
| Light guide | Plastic fibre optic, 5 mm |
| Fitting standard | ISO 7376/3 (green standard) |
| Light guide options | Shielded or unshielded |
| Use | Single use |
| Hygiene | Microbiologically clean |
| Packaging | Foil; 25 pcs per case |
| Manufacturer | LongLife |
Features
- 5 mm plastic fibre-optic light guide for bright, even laryngeal illumination
- Metal-alloy blade with plastic base for rigidity and a true blade profile
- Available with shielded or unshielded light guide
- ISO 7376/3 green-standard fitting — compatible with all matching handles
- Single use — eliminates reprocessing and cross-contamination risk
Ordering information
| REF | Size | Length | Light guide |
| LONG-AL-1801-00E | 00 | 68 mm | Unshielded |
| LONG-AL-1801-0E | 0 | 76 mm | Unshielded |
| LONG-AL-1801-1E | 1 | 95 mm | Unshielded |
| LONG-AL-1801-2 | 2 | 105 mm | Shielded |
| LONG-AL-1801-2E | 2 | 105 mm | Unshielded |
| LONG-AL-1801-3 | 3 | 135 mm | Shielded |
| LONG-AL-1801-3E | 3 | 135 mm | Unshielded |
| LONG-AL-1801-4 | 4 | 155 mm | Shielded |
| LONG-AL-1801-4E | 4 | 155 mm | Unshielded |
| LONG-AL-1801-5 | 5 | 175 mm | Shielded |
| LONG-AL-1801-5E | 5 | 175 mm | Unshielded |
Applications: Endotracheal intubation • Anaesthesia • Emergency medicine • Intensive care
Regulatory & Compliance
- CE marked medical device, compliant with Regulation (EU) 2017/745 (MDR)
- Each blade is laser-marked with batch number, type, size, the CE mark and the single-use symbol
- Laryngoscope fitting per ISO 7376/3 (green standard)
- Single use — supplied microbiologically clean; do not reuse or re-sterilise
- Manufacturer: LongLife
