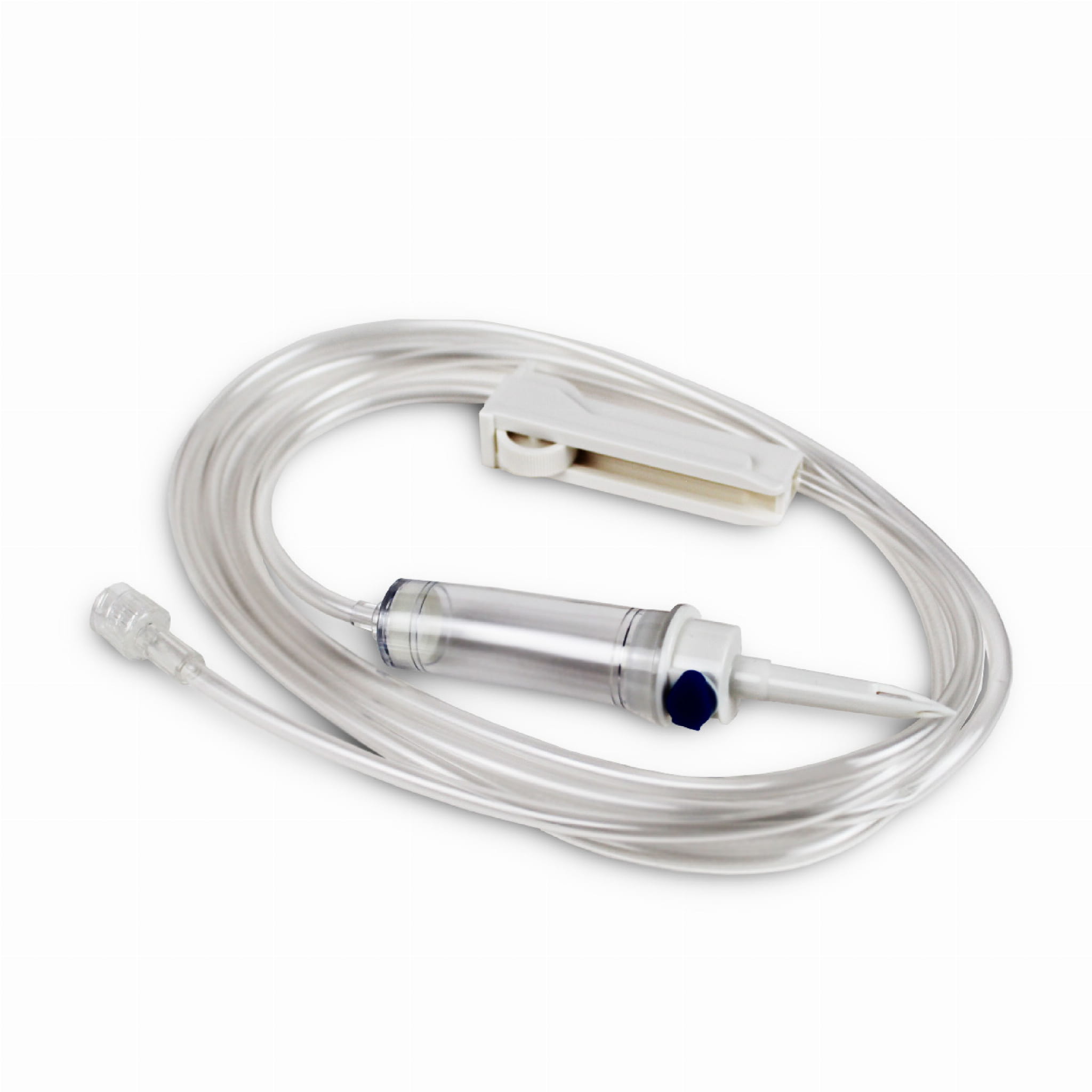

Infusion Fluid Transfer Device
REF: BQ-I-IS
zoom_inClick to zoom
grid_onProduct Info
Available
Product
Reference
Standard
BQ-I-IS
descriptionProduct description
Infusion Sets
IV Infusion Set
Gravity IV infusion set for the administration of infusion fluids, with a vented dual-channel spike, drip chamber with fluid filter and a luer-lock patient connector.
Specifications
| Spike | Dual-channel, sharp |
| Air vent | Antibacterial filter, blue flap |
| Drip rate | 20 drops = 1 ml (±0.1) |
| Fluid filter | 15 µm |
| Tubing | 150 cm, luer-lock |
| Clamp | Precision roller clamp |
| Properties | Non-pyrogenic, non-toxic, latex-free |
| Use | Sterile, single use |
| Packaging | 250 pcs per case |
| Manufacturer | BQ |
Features
- Vented dual-channel spike for a secure connection to bottles and bags
- Antibacterial air-vent filter with closable blue flap
- Drip chamber with 15 µm fluid filter, 20 drops = 1 ml
- 150 cm tubing with universal luer-lock connector
- Precision roller clamp with tube hanger; protective end caps
Applications: Intravenous therapy • Hospitals • Oncology / infusion units
Regulatory & Compliance
- CE marked medical device, compliant with Regulation (EU) 2017/745 (MDR)
- Supplied sterile — single use only; do not reuse or re-sterilise
- Manufacturer: BQ
