Neonatal Infusion Filter 2 µm
zoom_inClick to zoom
grid_onSelect variants
Available
Size
Reference
Select all options
style
Available in 2 variants
Select variant options above
descriptionProduct description
Infusion / Filters

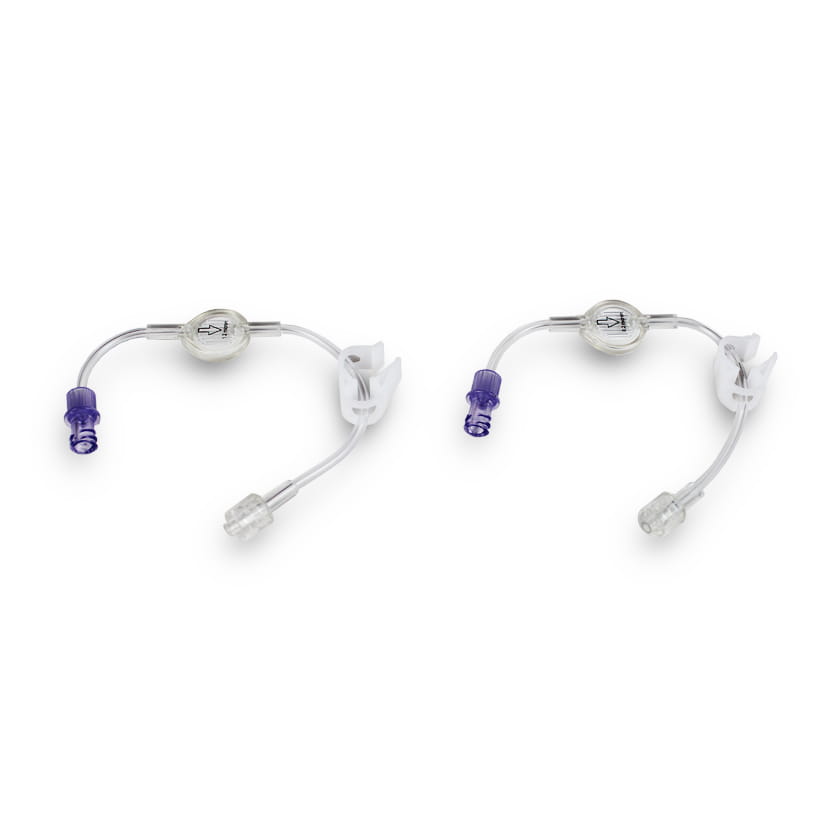

Neonatal In-Line Infusion Filter (Extension Set)
Neonatal infusion extension set with an in-line filter that removes particles and air from infusion fluids. Available with a 0.2 µm or 1.2 µm hydrophilic membrane, with a 0.03 µm hydrophobic air-eliminating membrane.
Specifications
| Hydrophilic membrane | 0.2 µm or 1.2 µm (see options) |
| Air-eliminating membrane | 0.03 µm hydrophobic (PTFE vent) |
| Housing | Medical ABS |
| Tubing | 5 cm + 10 cm, 1.5 × 3 mm, DEHP-free |
| Pressure rating | 3.6 bar (52.2 psi) |
| Dead space | 0.4 ml |
| Properties | Non-pyrogenic, non-toxic, latex-free |
| Use | Sterile, single use |
| Packaging | 100 pcs per case |
| Manufacturer | BQ |
Features
- In-line particle and air removal for neonatal infusion
- Hydrophilic membrane (0.2 µm or 1.2 µm) plus 0.03 µm hydrophobic air-eliminating membrane
- Medical ABS housing; DEHP-free tubing (5 cm + 10 cm)
- Pressure rated to 3.6 bar (52.2 psi); low dead space (0.4 ml)
Ordering information
| REF | Pore size | Flow rate |
| BQ-EXTF-0.2 | 0.2 µm | > 5 ml/min |
| BQ-EXTF-1.2 | 1.2 µm | > 40 ml/min |
Applications: Neonatal / paediatric infusion • Intensive care
Regulatory & Compliance
- CE marked medical device, compliant with Regulation (EU) 2017/745 (MDR)
- Supplied sterile — single use only; do not reuse or re-sterilise
- Manufacturer: BQ
