descriptionProduct description
Breathing Circuits
Smooth-Bore Breathing Circuit with Additional Limb and Reservoir Bag
Smooth-bore anaesthesia breathing circuit supplied with an additional limb and a latex-free 2-litre reservoir bag. The smooth internal lumen lowers flow resistance.
Specifications
| Type | Smooth bore |
| Reservoir bag | 2 l, latex-free |
| Additional limb | Included |
| Connections | ISO-compliant |
| Use | Single use |
| Manufacturer | Huakun |
Features
- Smooth internal lumen for low flow resistance
- Additional limb and latex-free 2-litre reservoir bag
- Leak-resistant construction minimises the risk of disconnection in the circuit
- Transparent Y-piece and ported elbow allow easy observation of gas flow
- All connections comply with ISO standards

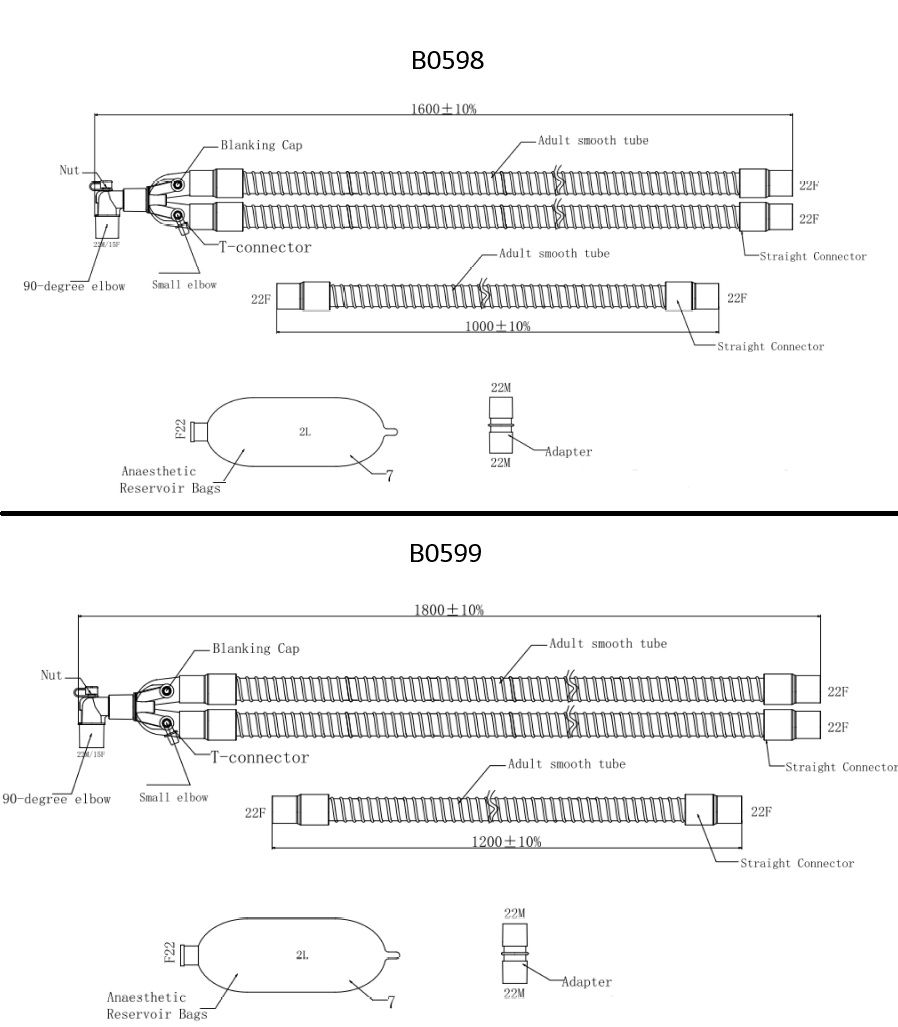

Ordering information
| REF | Total length | Additional branch | Bag |
| HUAKUN-B0598 | 160 cm | 100 cm | 2L |
| HUAKUN-B0599 | 180 cm | 120 cm | 2L |
Applications: Anaesthesia • Mechanical ventilation • Operating theatre • Intensive care
Regulatory & Compliance
- CE marked medical device, compliant with Regulation (EU) 2017/745 (MDR)
- Supplied sterile — single use only; do not reuse or re-sterilise
- Manufacturer: Huakun
